Diamond Cargo 6×14 SA Trailer – Green, Side Door, Extra Height, Concession, Insulated, Electrical, and More


Custom 6×14 Single Axle Trailer – Electric Green, Flush Lock 48in Side Door, 3in Extra Height, Concession Door with Window, Insulated WallsCeiling, 30Amp Electrical Package, GFI Outlets, AC, and Stabilizer Jacks

SKU: BD 6x14SAL - EGrn, ND, RV, Options 72206 - Catalog Categories: , , , Tags: , ,


Trailer Specifications:

– Flooring Crossmembers – 16in On Center
– Roof Members – 16in On Center
– Sidewall Members – 16in On Center
– 2,000 lbs. A-Frame Jack
– Sand Foot
– 2in Coupler
– 3in Steel Tube Main Frame Rails
– Upgrade 32in Flush Lock Side Door to 48in Flush Lock Side Door (6 and 7 Wides)
– Electric Green .030 Aluminum Exterior with Matching Screws
– Semi-Screwless Exterior
– Approximate Interior Height – 75in (6ft3in)
– Extra Height – +3in
– 3/4in Plywood Floors
– 3/8in Plywood Walls
– Interior 12 Volt Dome Light
– Silver Mod Wheels
– ST205 15in Radial Tires
– Aluminum Jeep Fenders
– Galvalume Roof
– Non-Powered Roof Vent
– 24in Stone Guard
– 2,990 lbs. Drop Leaf Spring Axle
– Flat 4 Pigtail

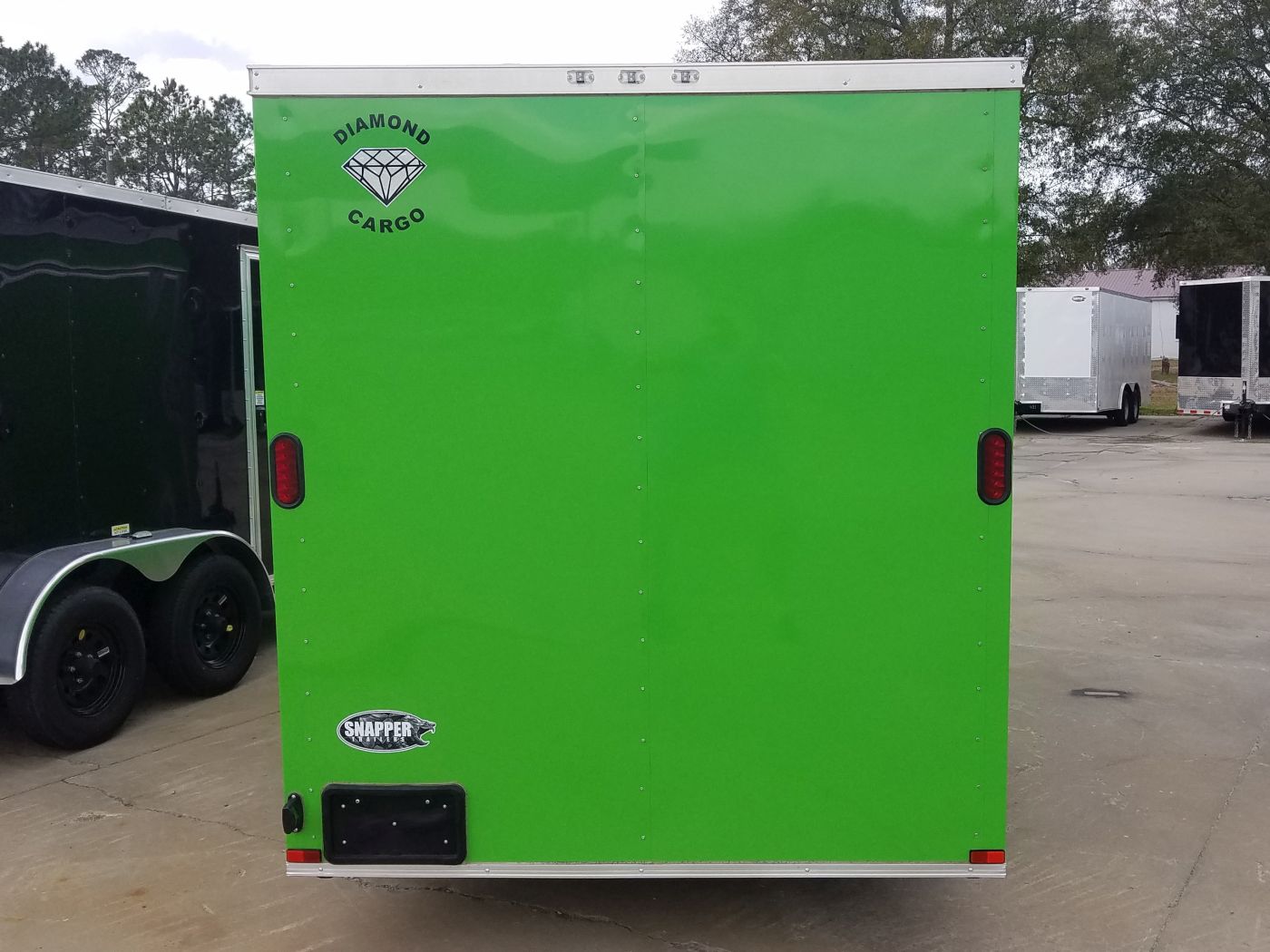

– Eliminate Rear Access. Rear To Be Solid Wall
– E-Z Lube Hubs
– Door Hold Back

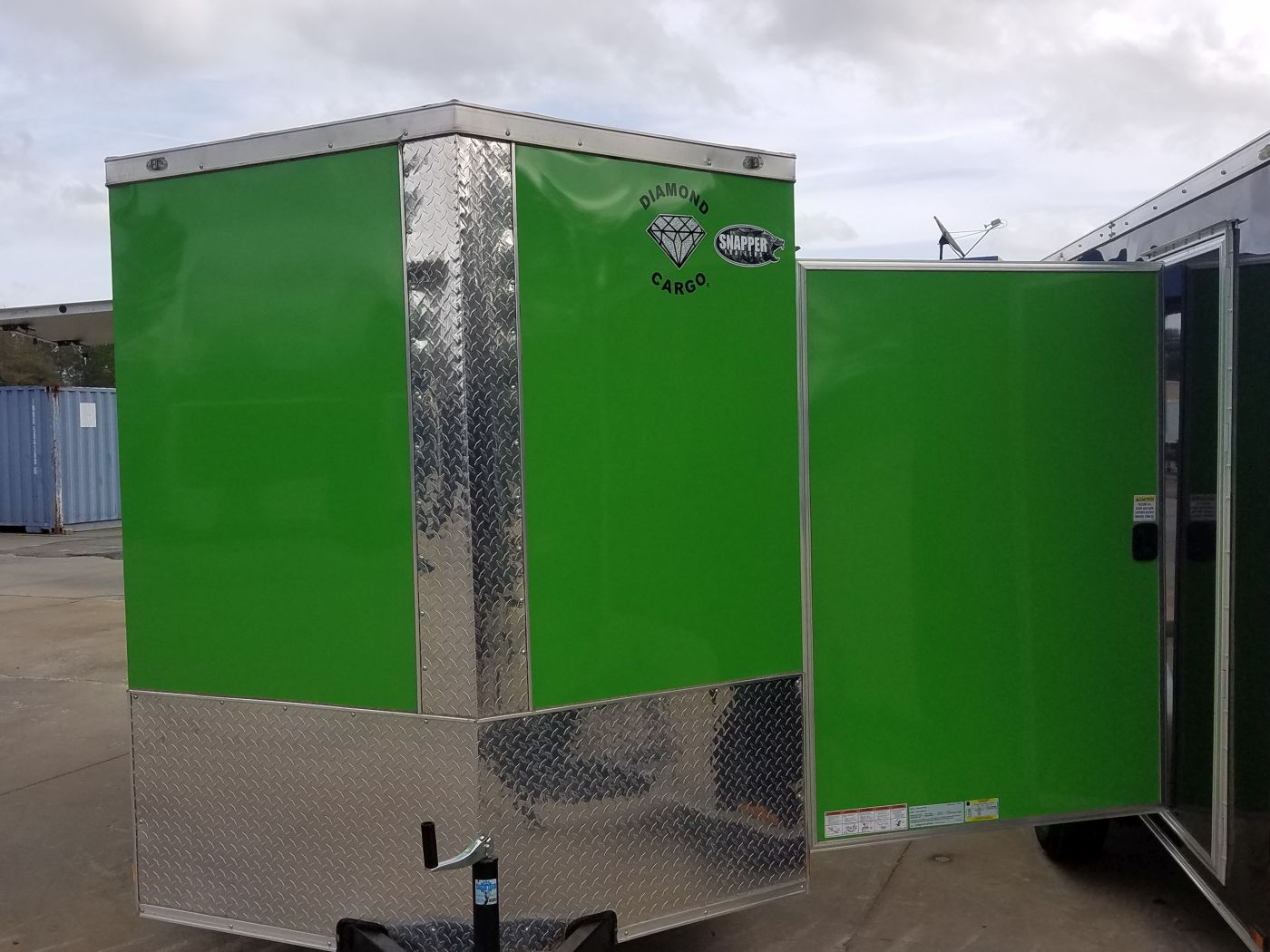

– V-Nose with ATP
– LED Tail Lights
– Five Year Manufacturers Limited Warranty
– Fold Down Stabilizer Jacks (Pair)
– Move Side Door Anywhere but V-Nose

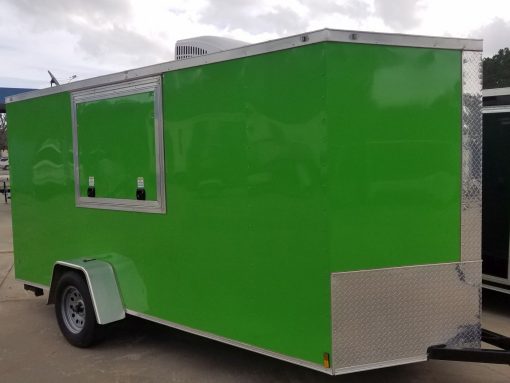

– 4ft x 3ft Concession Door (No Window) (May want Extra Height to Ensure Canopy does not Cause Issues)
– 4ft x 3ft Concession Window with Glass and Screen
– Wire and Brace Roof Vent for A/C (Does not Include the Roof Vent)
– 13,500 A/C Unit with Heat Strip
– Raw Luan Ceiling Liner
– Insulate Walls with R-Foil
– Insulate Ceiling with R-Foil (Requires Ceiling Liner)
– 110v GFI Interior/Exterior Receptacle 15 AMP (Each)
– Electrical Package – 30 AMP includes 2 Receptacles, (1) 110V Switch, (2) 110V 24in Flat Panel LED’S, 60 AMP Panel Box
w/Lifeline (Up to (3) 20 AMP Breaker)

$10,470.00 Picked up at our factory lot in Pearson, GA (Call (229) 588-2005 for Availability)

Want to pick it up from one of our Lot locations?
$10,750.00 Picked up at our lot in Lutz, FL (Call (813) 920-0570 for Availability)
$10,699.00 Picked up at our lot in Bushnell, FL (Call (352) 593-9800 for Availability)
$10,895.00 Picked up at our lot in Fayetteville, NC (Call (910) 705-8330 for Availability)
$10,826.00 Picked up at our lot in Ft Pierce, FL (Call (772) 801-0602 for Availability)
$10,578.00 Picked up at our lot in Lake City, FL (Call (386) 361-6700 for Availability)
$10,470.00 Picked up at our lot in Pearson, GA (Call (229) 588-2005 for Availability)
$11,447.00 Picked up at our lot in Hillsboro, TX (Call (254) 221-0717 for Availability)

Looking to build a custom trailer? We can customize your next trailer with thousands of options! If you can dream it, we can build it! Contact one of our salespeople to be walked through the entire process and obtain a quote today!

Over 20,000 Trailers sold since 2011! Over 500+ trailers in stock throughout our 7 locations! Contact us today for a free no-obligation proposal!

We offer a Veteran and Active Military Discount of $25 off your purchase of a trailer. Be sure to let your salesperson know at the time of checkout. Thank you for your service!

The website updates its listings every 24 – 48 hours so please call ahead of time to ensure the availability of the Trailer you might wish to purchase. We do everything in our power to bring you high-quality images that match the trailer description, but in some cases, we use stock photos to represent the trailer, so options and colors may differ from trailer to trailer.

Data Generated 2023-12-07 17:49

Additional information

Dimensions 14 × 6 in
