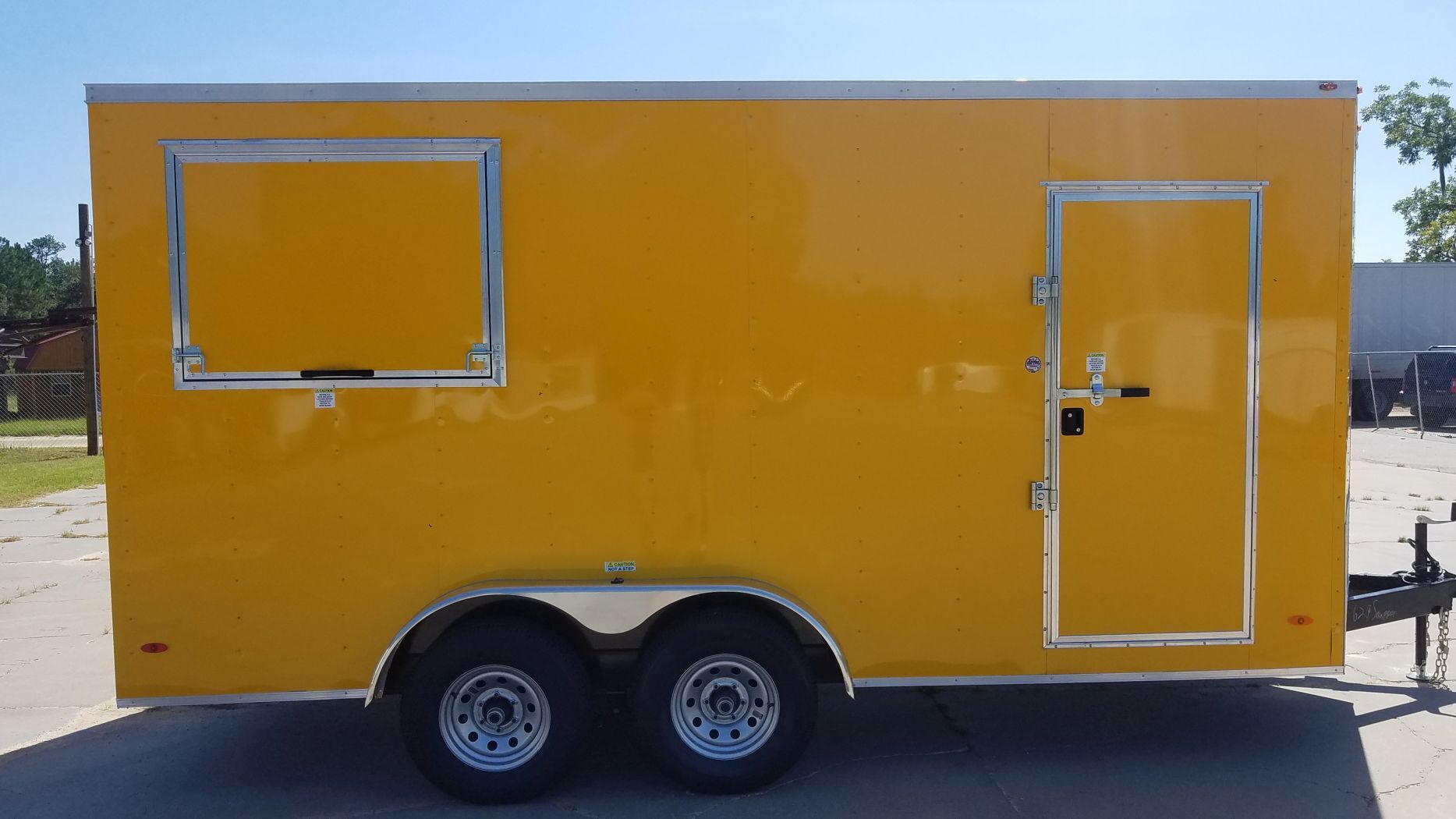

Freedom Trailers 7×16 TA Trailer – Yellow, Side Door, Extra Height, 5K Axles, Electrical, Concession, Finished Interior


Custom 7×16 Tandem Axle Trailer – Yellow, a Side Door, 12in Extra Height, Two 3ft x 5ft Concession Doors, 30A Electrical Package, Metal Wall Liner, RTP Floor, and More

SKU: AF 7x16TA3L - Yel, NR, RVBL, Options 0629 - Catalog Categories: , , , Tags: , ,


Trailer Specifications:

– Aluminum Tread Plate (ATP) Stone Guard on Front – 24in
– White Powder Coated Modular Style Steel Rims
– ST205/75/R15 15in Radial Tires
– Aluminum Teardrop Fenders
– Fender Lights
– No Rear Access. Make Rear Solid Wall
– 32in RV Side Door with Secure Bar Lock
– Yellow .030 Aluminum Exterior with Matching Screws
– 3/4in Plywood Floors or Stabledeck Engineered Plywood
– 3/8in Grade A Plywood Walls or Stabledeck Engineered Plywood
– 12 Volt LED Dome Light with Switch
– Approximate Interior Height 84in (6ft +12in Extra Height)
– Additional Height – +12in (Colored Metal) (Please allow for about a 1in Tolerance)
– 2,000 lbs Tongue Jack
– Manual Crank Roof Vent
– Galvalume Roof
– High Tech Roof Sealant
– Heavy Duty Exterior Trim
– 1in x 1.5in Tube Walls and Rafters
– Roof Bows – 16in On Center
– Screwed Exterior
– All LED Exterior Lights
– Ball Coupler – 2-5/16in
– Upgrade Tandem Axles 3,500 Leaf Spring to 5,200 Leaf Spring (Includes ST225 Tire Upgrade)
– Upgrade 2in x 4in Tube Frame to 6in I-Beam
– 7 Way Bargman Plug
– Wall Members – 16in On Center
– Floor Cross Members – 16in On Center
– V-Nose Front with Vertical Aluminum Tread Plate (ATP) Trim
– Safety Chains
– A-Frame Style Tongue
– Five Year Manufacturers Limited Warranty
– Thermo Ply Ceiling Liner (12 in center strip.)
– 3ft (H) x 5ft (W) Concession Door (No Glass)
– 30 Amp Electrical Package – 30 Amp Panel Box, 2x110V Recepts, 2x3ft LED Lights (trailers less than 6ft6in tall will have lights in Corners), and 25ft Lifeline (Wiring will be Exposed without Ceiling Liner)
– 30 Amp Motorbase Plug W/ Twist Lock ILO Lifeline
– Additional 110V Interior Receptacle
– White or Mill Finish Metal Walls and Ceilings
– Floor Liner – Coin Rubberized Tread Plate (RTP)

$11,354.00 Picked up at our factory lot in Pearson, GA (Call (229) 588-2005 for Availability)

Want to pick it up from one of our Lot locations?
$11,652.00 Picked up at our lot in Lutz, FL (Call (813) 920-0570 for Availability)
$11,594.00 Picked up at our lot in Bushnell, FL (Call (352) 593-9800 for Availability)
$11,818.00 Picked up at our lot in Fayetteville, NC (Call (910) 705-8330 for Availability)
$11,740.00 Picked up at our lot in Ft Pierce, FL (Call (772) 801-0602 for Availability)
$11,456.00 Picked up at our lot in Lake City, FL (Call (386) 361-6700 for Availability)
$11,354.00 Picked up at our lot in Pearson, GA (Call (229) 588-2005 for Availability)
$12,449.00 Picked up at our lot in Hillsboro, TX (Call (254) 221-0717 for Availability)

Looking to build a custom trailer? We can customize your next trailer with thousands of options! If you can dream it, we can build it! Contact one of our salespeople to be walked through the entire process and obtain a quote today!

Over 20,000 Trailers sold since 2011! Over 500+ trailers in stock throughout our 7 locations! Contact us today for a free no-obligation proposal!

We offer a Veteran and Active Military Discount of $25 off your purchase of a trailer. Be sure to let your salesperson know at the time of checkout. Thank you for your service!

The website updates its listings every 24 – 48 hours so please call ahead of time to ensure the availability of the Trailer you might wish to purchase. We do everything in our power to bring you high-quality images that match the trailer description, but in some cases, we use stock photos to represent the trailer, so options and colors may differ from trailer to trailer.

Data Generated 2023-12-07 17:49

Additional information

Dimensions 16 × 7 in
