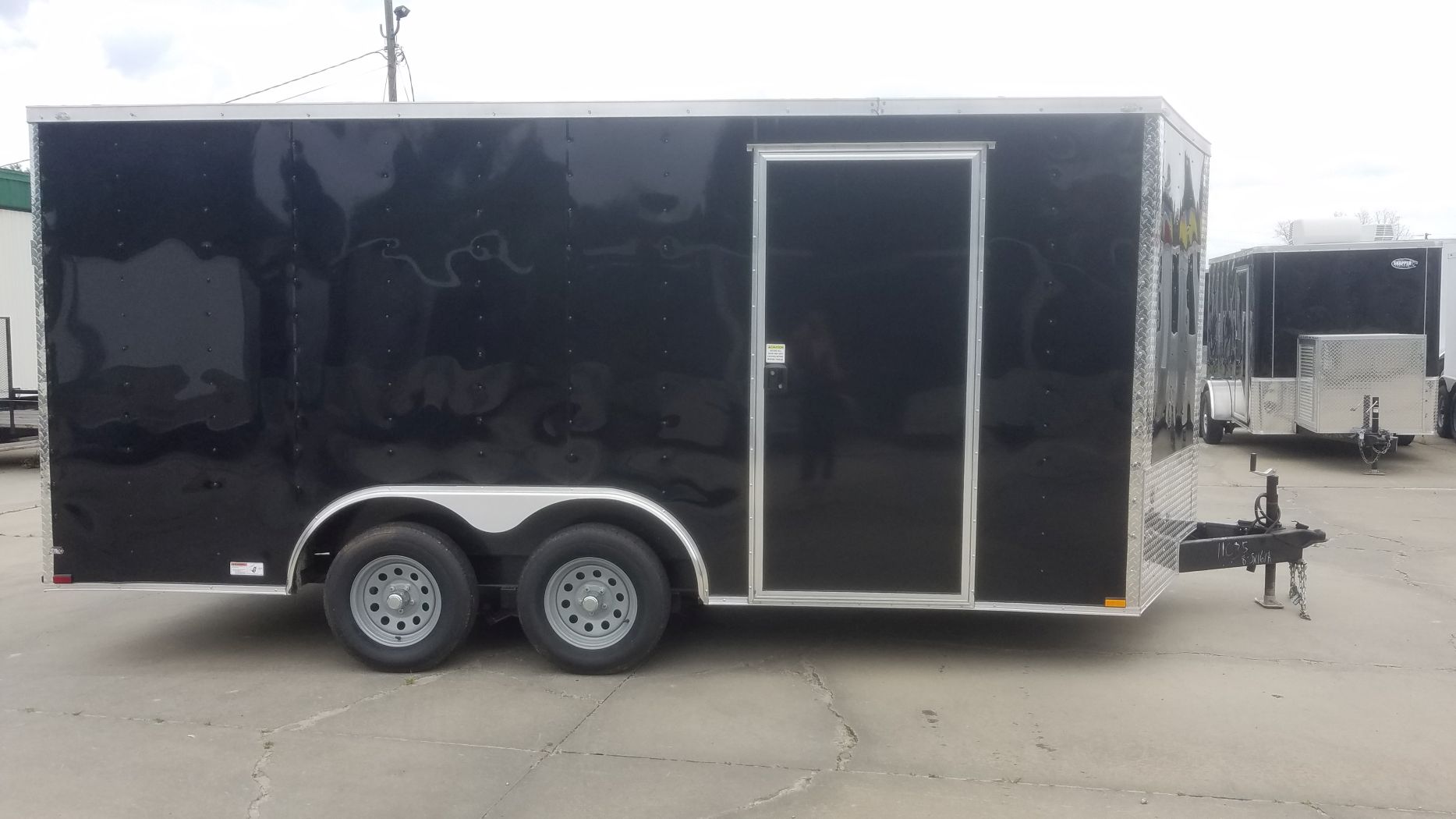

Quality Cargo 8.5×16 TA Trailer – Black, Ramp, Side Door, D-Rings, 5K Axles


Custom 8.5×16 Tandem Axle Trailer – Black with a Rear Ramp, Side Door with Flush Lock, 4x Floor Recessed D-Rings, and 5,200 lbs. Axles

SKU: BQ 8.5x16TA3L - Blk, R, RV - Catalog Categories: , , , Tags: , ,


Trailer Specifications:

– Silver Powder Coated Modular Style Steel Rim with Center Cap
– ST205/75/R15 15in Radial Tires
– 36in Side Door with RV Style Flush Lock and Stepwell

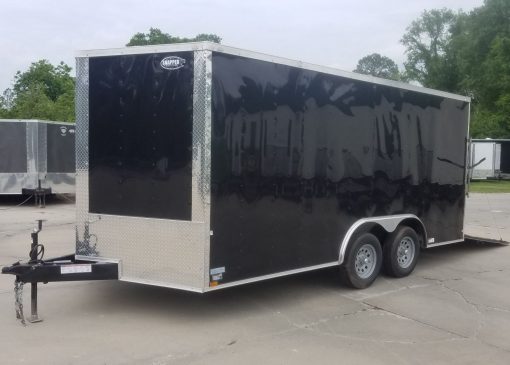

– V-Nose Front with Vertical Aluminum Tread Plate (ATP) Trim

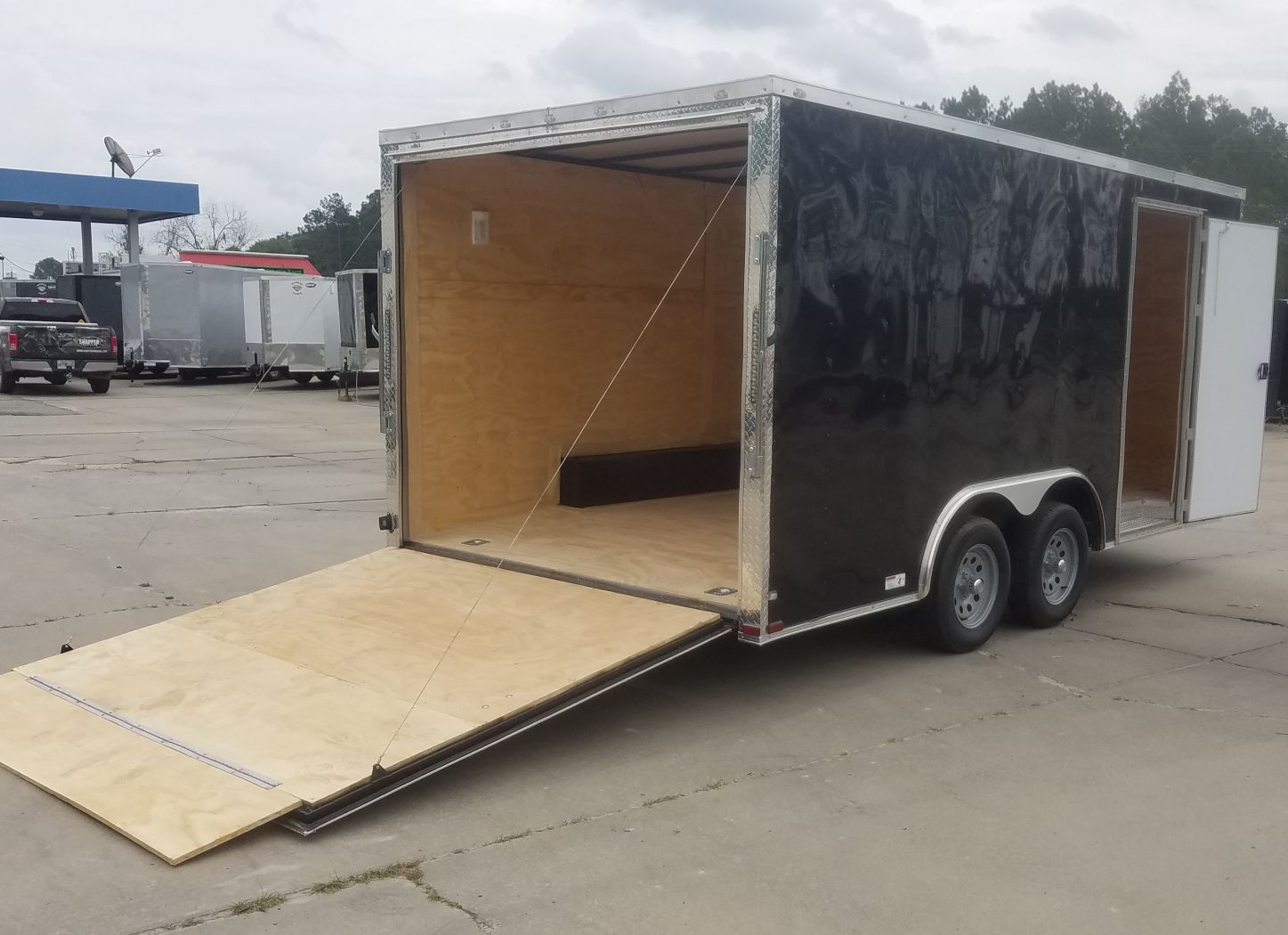

– Rear Medium Duty Ramp Door with Spring Assist and Bottom Flap
– Aluminum Tread Plate (ATP) Stone Guard on Front – 24in
– Beavertail Floor in Rear
– D-Ring Recessed in Floor
– 3/4in Plywood Floor Painted Underneath
– 3/8in Grade A Plywood Walls
– 1in x 1.5in Steel Tube in Walls and Ceiling
– Approximate Interior Height 78in (6ft6in)
– 2,000 lbs Manual Crank Tongue Jack
– 6in I-Beam Main Rails
– Interior 12 Volt LED Dome Light with Switch
– Pair of Plastic Sidewall Vents
– LED Strip Tail Lights
– Floor Crossmembers – 16in On Center
– Roof Bows – 24in On Center
– Wall Members – 16in On Center
– Galvalume Roof
– 7 Way Bargman Plug
– Ball Coupler – 2-5/16in
– Sandpad on Tongue Jack
– Heavy Duty Exterior Trim
– Screwed Metal Exterior
– Emergency Break Away Kit
– A-Frame Style Tongue
– Aluminum Teardrop Fender Flairs
– Safety Chains
– One Year Manufacturers Limited Warranty
– Bead Board Liner In-between Roof Bows
– Cool Seal Ceiling Liner (Thermo Ply)
– Anodized Aluminum Front and Rear Corners
– Black .024 Aluminum Exterior with Matching Screws
– Upgrade Tandem 3,500 lbs. Leaf Spring Axles to 5,200 lbs. (Includes ST225 Radial Tire Upgrade)

$7,428.00 Picked up at our factory lot in Pearson, GA (Call (229) 588-2005 for Availability)

Want to pick it up from one of our Lot locations?
$7,726.00 Picked up at our lot in Lutz, FL (Call (813) 920-0570 for Availability)
$7,668.00 Picked up at our lot in Bushnell, FL (Call (352) 593-9800 for Availability)
$7,892.00 Picked up at our lot in Fayetteville, NC (Call (910) 705-8330 for Availability)
$7,814.00 Picked up at our lot in Ft Pierce, FL (Call (772) 801-0602 for Availability)
$7,530.00 Picked up at our lot in Lake City, FL (Call (386) 361-6700 for Availability)
$7,428.00 Picked up at our lot in Pearson, GA (Call (229) 588-2005 for Availability)
$8,523.00 Picked up at our lot in Hillsboro, TX (Call (254) 221-0717 for Availability)

Looking to build a custom trailer? We can customize your next trailer with thousands of options! If you can dream it, we can build it! Contact one of our salespeople to be walked through the entire process and obtain a quote today!

Over 20,000 Trailers sold since 2011! Over 500+ trailers in stock throughout our 7 locations! Contact us today for a free no-obligation proposal!

We offer a Veteran and Active Military Discount of $25 off your purchase of a trailer. Be sure to let your salesperson know at the time of checkout. Thank you for your service!

The website updates its listings every 24 – 48 hours so please call ahead of time to ensure the availability of the Trailer you might wish to purchase. We do everything in our power to bring you high-quality images that match the trailer description, but in some cases, we use stock photos to represent the trailer, so options and colors may differ from trailer to trailer.
