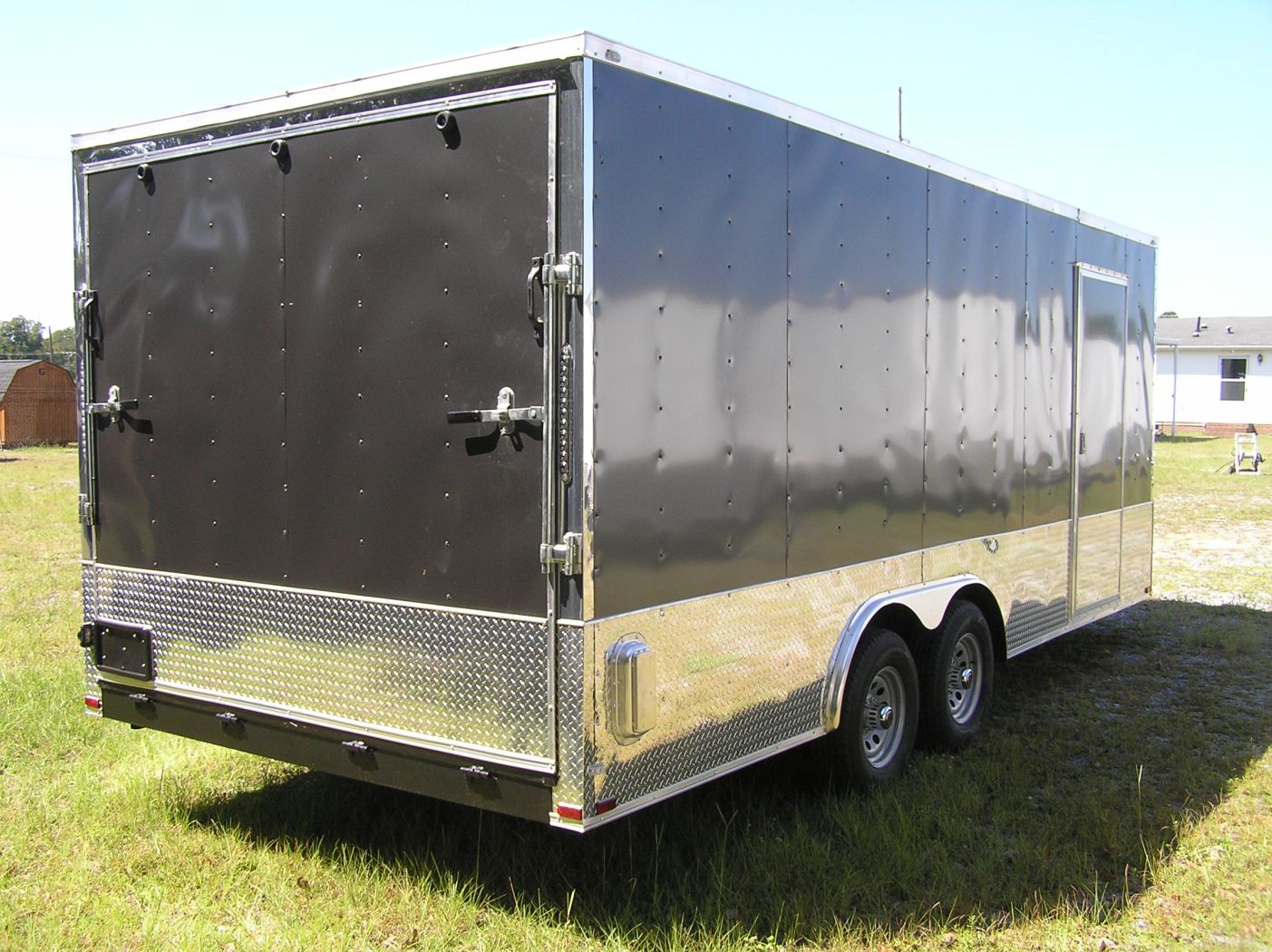

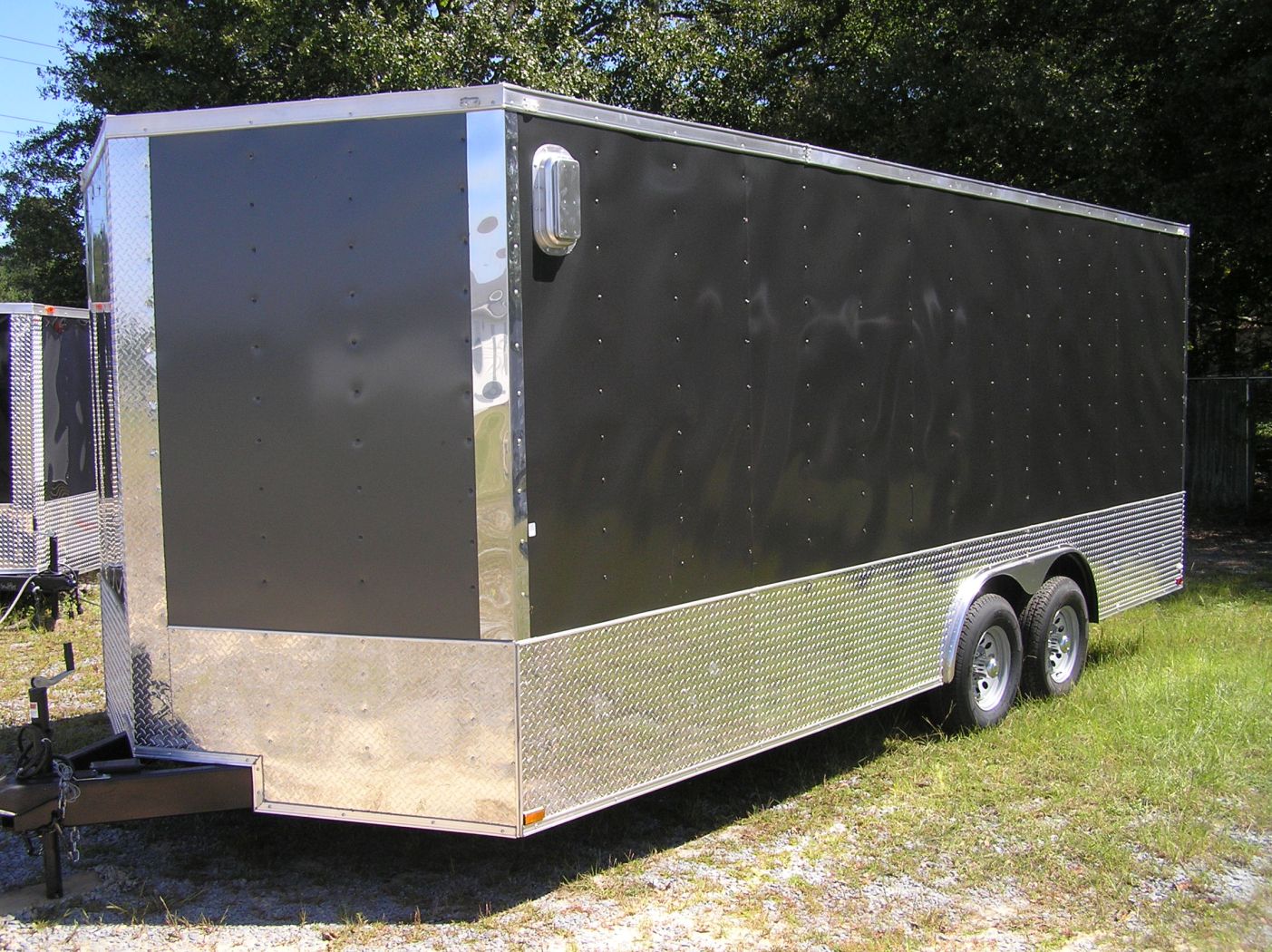

Quality Cargo 8.5×20 TA Trailer – Charcoal, Ramp, Side Door, D-Rings, 5K Axles, Finished Interior, Electrical, Cabinets, Extra Height


Custom 8.5×20 Tandem Axle Trailer – Charcoal with a Rear Ramp, Side Door with Flush Lock, 4x Floor Recessed D-Rings, 5,200 lbs. Axles, 6in Extra Height, RTP FloorRamp, White Metal WallsCeiling, Metal BaseOverhead Cabinets, and 50Amp Electrical Package

SKU: BQ 8.5x20TA3L - Chr, R, RV, Options 5665 - Catalog Categories: , , , Tags: , ,


Trailer Specifications:

– V-Nose Front with Vertical Aluminum Tread Plate (ATP) Trim

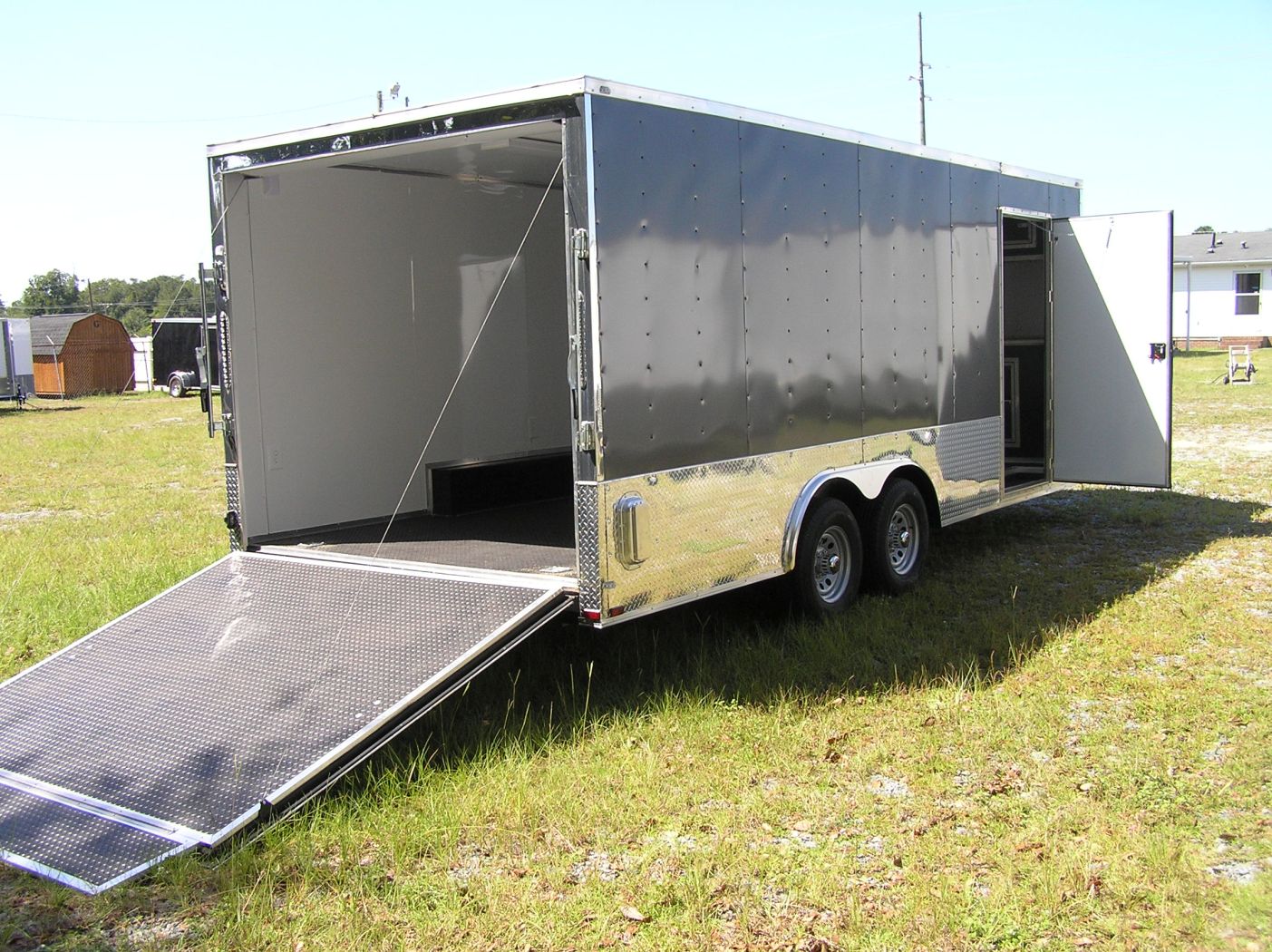

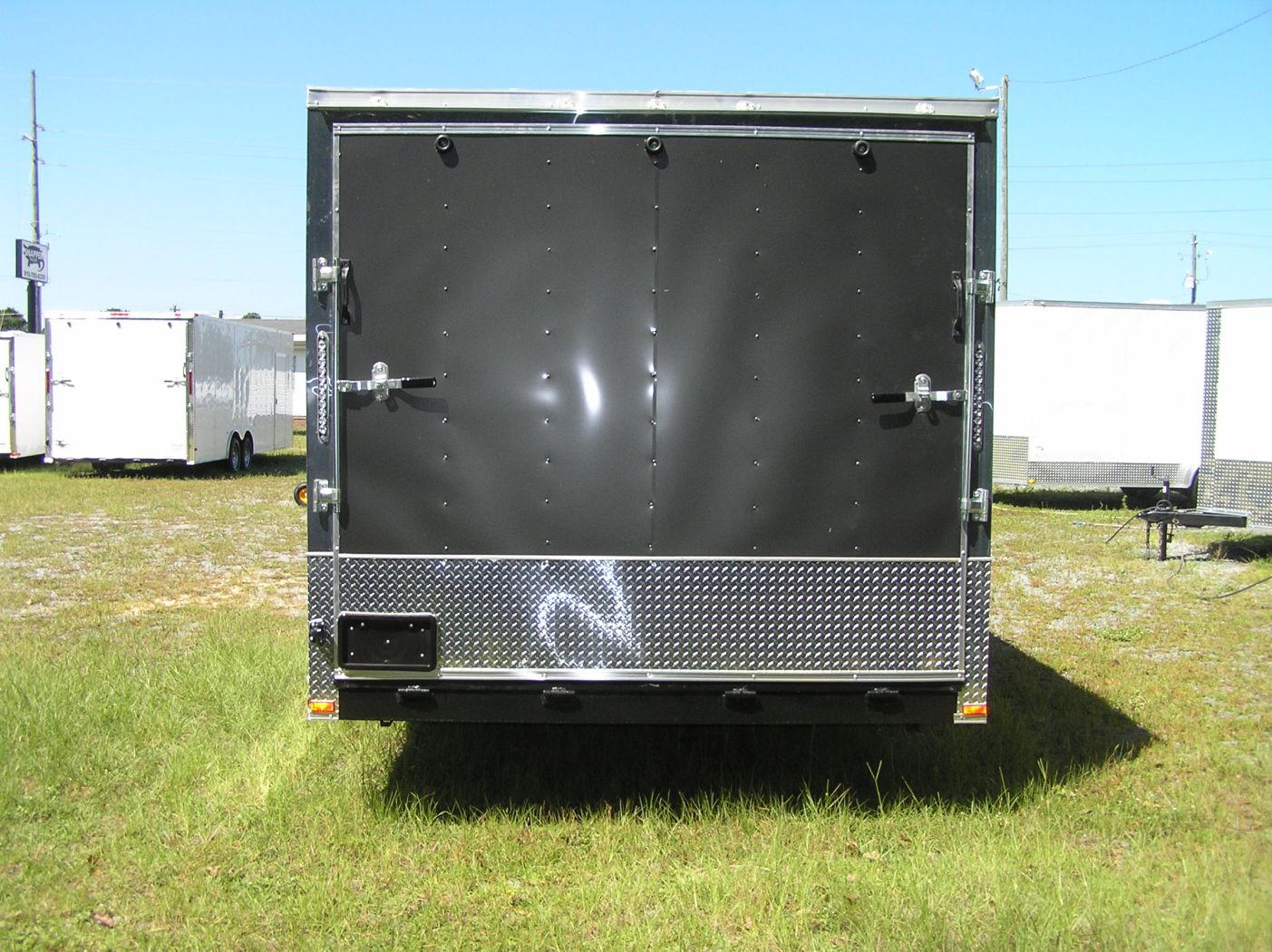

– Rear Medium Duty Ramp Door with Spring Assist and Bottom Flap
– Charcoal Grey .024 Aluminum Exterior with Matching Screws
– Upgrade Tandem 3,500 lbs. Leaf Spring Axles to 5,200 lbs. (Includes ST225 Radial Tire Upgrade)
– Roof Bows – 24in On Center
– 2,000 lbs Manual Crank Tongue Jack
– Floor Crossmembers – 16in On Center
– Safety Chains
– Wall Members – 16in On Center
– 3/4in Plywood Floor Painted Underneath
– 3/8in Grade A Plywood Walls
– A-Frame Style Tongue
– 6in I-Beam Main Rails

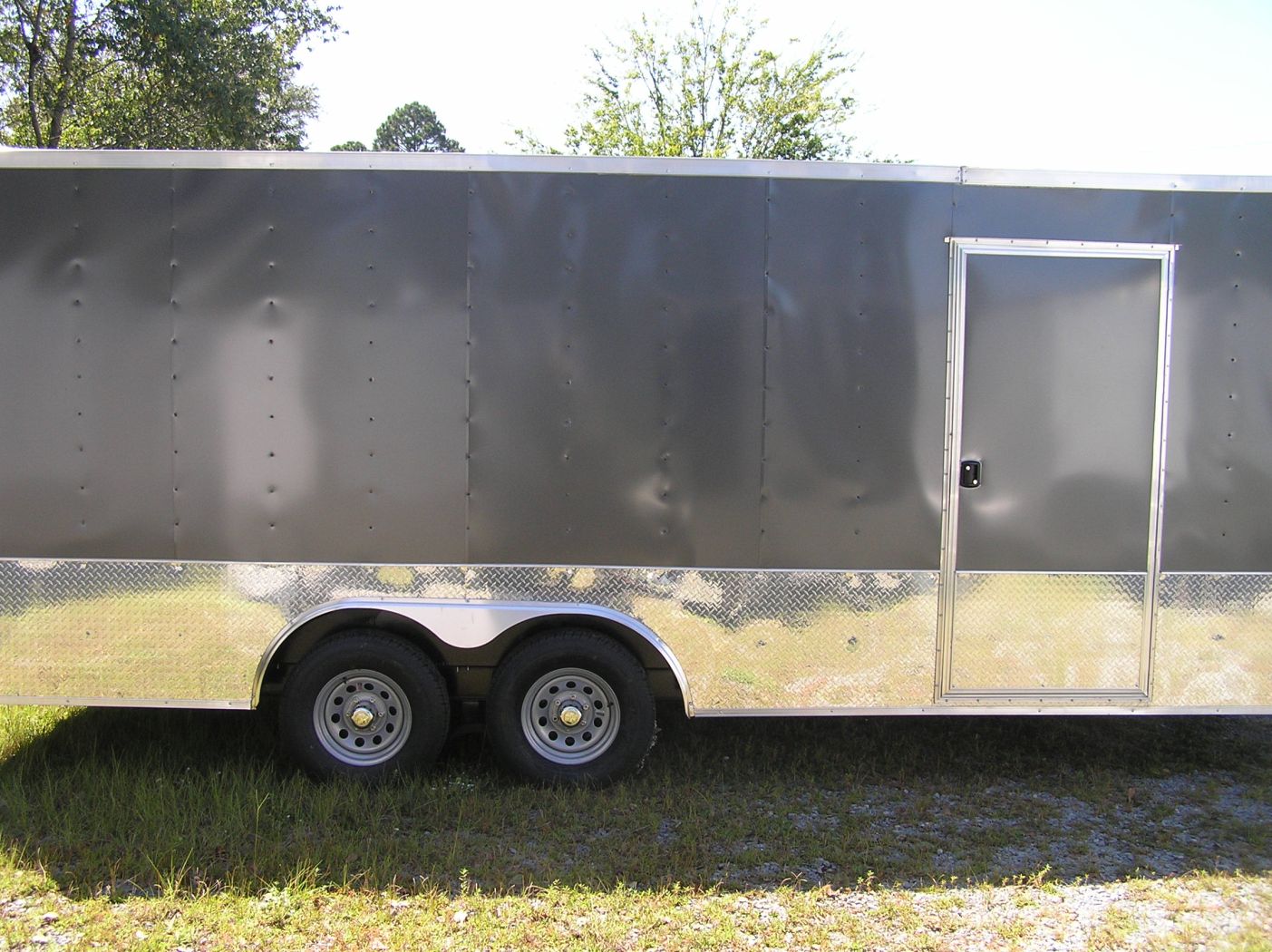

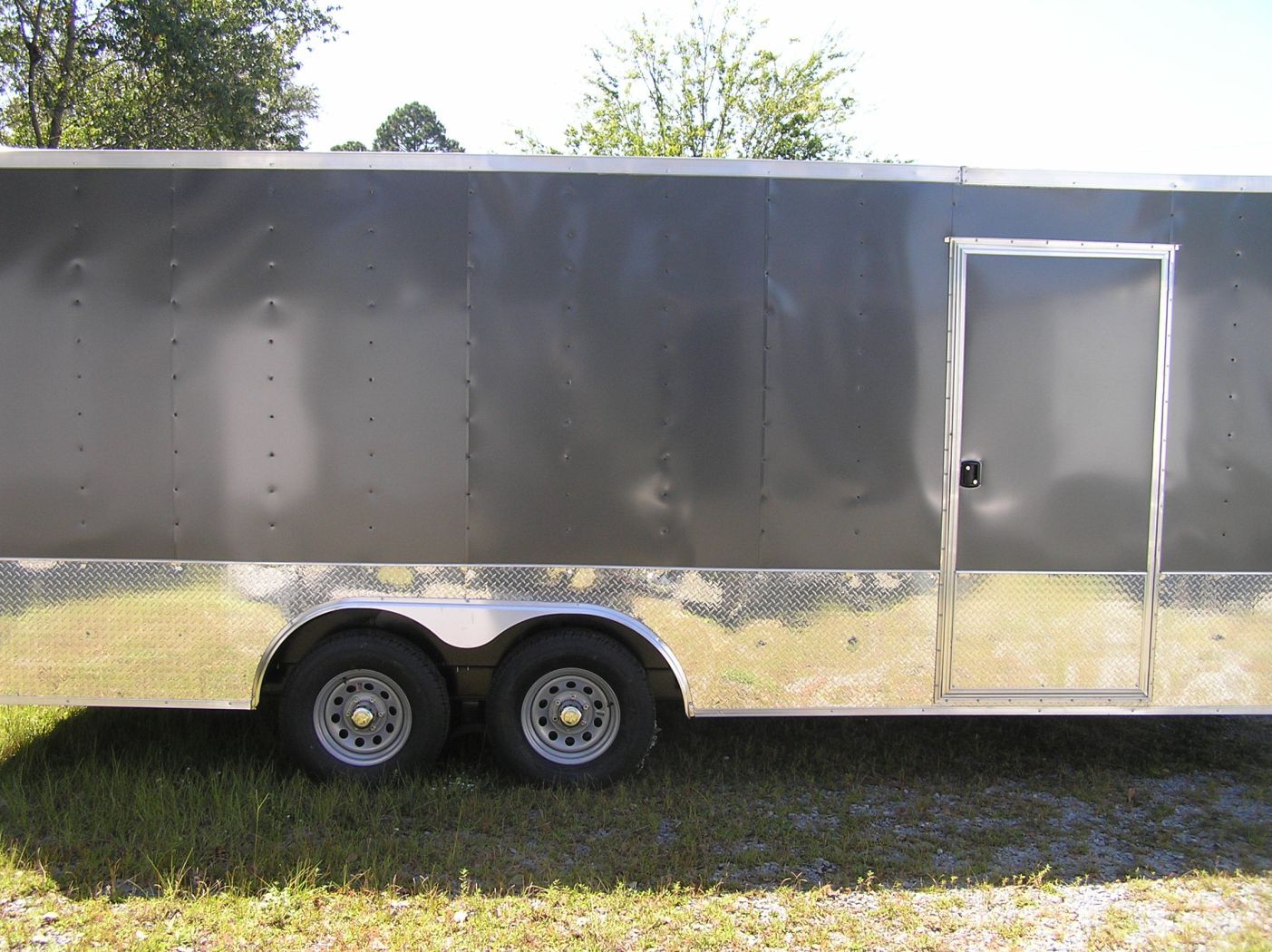

– 36in Side Door with RV Style Flush Lock and Stepwell
– Silver Powder Coated Modular Style Steel Rim with Center Cap
– Emergency Break Away Kit
– Interior 12 Volt LED Dome Light with Switch
– Approximate Interior Height 84in (6ft6in +6in Extra Height)
– Aluminum Tread Plate (ATP) Stone Guard on Front – 24in
– ST225/75/R15 15in Radial Tires
– One Year Manufacturers Limited Warranty
– 1in x 1.5in Steel Tube in Walls and Ceiling
– Galvalume Roof
– Heavy Duty Exterior Trim
– Pair of Aluminum Side Wall Vents
– Screwed Metal Exterior
– Sandpad on Tongue Jack
– Beavertail Floor in Rear
– LED Strip Tail Lights
– Ball Coupler – 2-5/16in
– 7 Way Bargman Plug
– D-Ring Recessed in Floor
– Aluminum Teardrop Fender Flairs
– Bead Board Liner In-between Roof Bows
– Cool Seal Ceiling Liner (Thermo Ply)
– Anodized Aluminum Front and Rear Corners
– +6in Extra Height (Please allow for about a 1in Tolerance)
– Ceiling Liner – [White/Mill Finish] Metal with Luan Backing
– Wall Liner – White Metal
– Floor Liner – Diamond Rubberized Tread Plate (RTP)
– Ramp and Flap Liner – Diamond Rubberized Tread Plate (RTP) on Rear Ramp and Flap

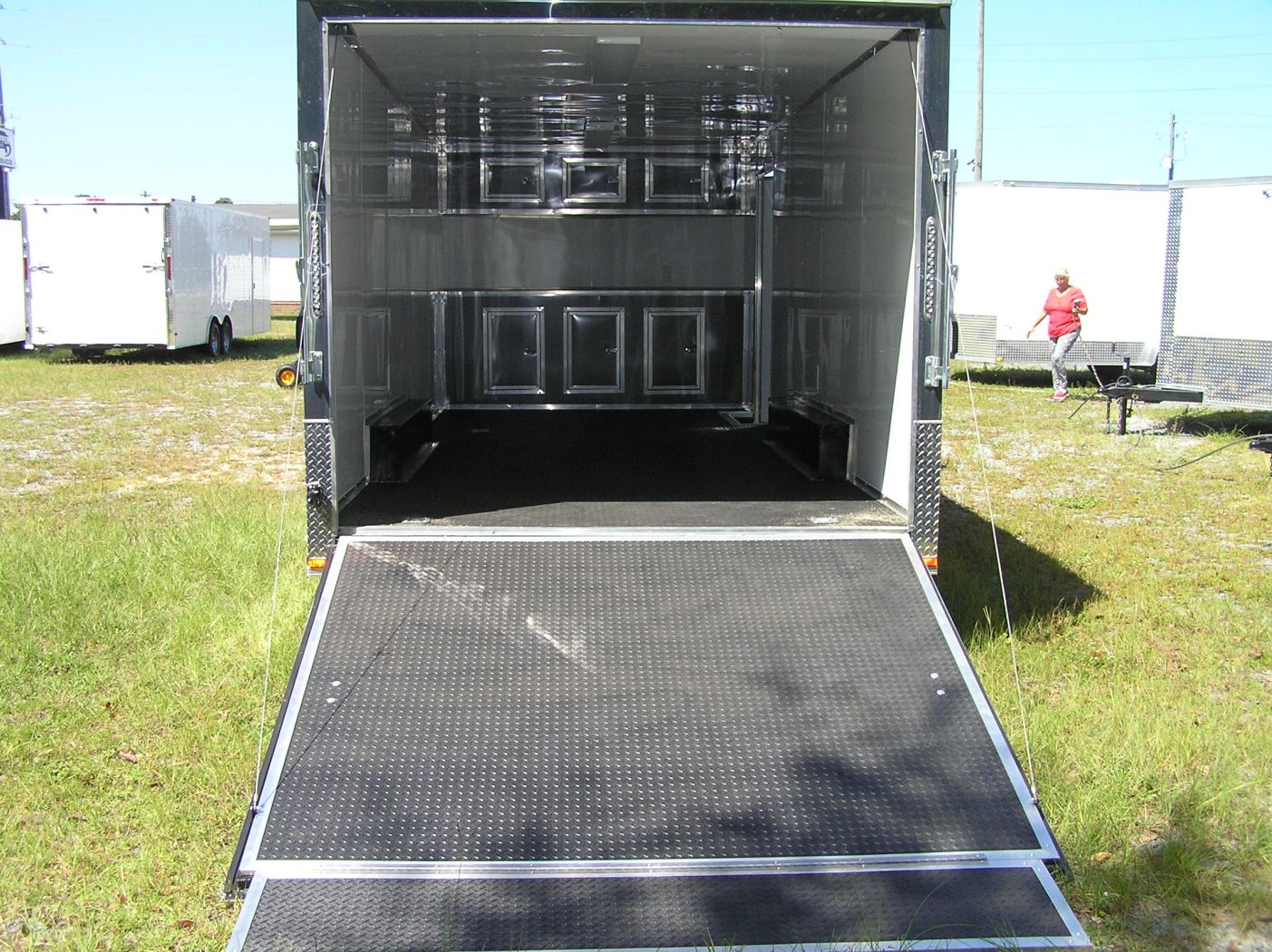

– Metal Base and Overhead Cabinets in V-Nose (3 doors each)
– 24in Diamond Aluminum Tread Plate (ATP) Trim on Sides and Rear
– 50 Amp Package – 8 Space Panel Box, 50 Amp Main Breaker & Lifeline, Cable Hatch, 2x110V Recept, 1xSwitch, 2x4ft Fluorescent Lights, 2xBreakers (Wiring will be Exposed without Ceiling Liner)
– Additional 110V Interior Receptacle

$13,183.00 Picked up at our factory lot in Pearson, GA (Call (229) 588-2005 for Availability)

Want to pick it up from one of our Lot locations?
$13,568.00 Picked up at our lot in Lutz, FL (Call (813) 920-0570 for Availability)
$13,495.00 Picked up at our lot in Bushnell, FL (Call (352) 593-9800 for Availability)
$13,775.00 Picked up at our lot in Fayetteville, NC (Call (910) 705-8330 for Availability)
$13,678.00 Picked up at our lot in Ft Pierce, FL (Call (772) 801-0602 for Availability)
$13,323.00 Picked up at our lot in Lake City, FL (Call (386) 361-6700 for Availability)
$13,183.00 Picked up at our lot in Pearson, GA (Call (229) 588-2005 for Availability)
$14,564.00 Picked up at our lot in Hillsboro, TX (Call (254) 221-0717 for Availability)

Looking to build a custom trailer? We can customize your next trailer with thousands of options! If you can dream it, we can build it! Contact one of our salespeople to be walked through the entire process and obtain a quote today!

Over 20,000 Trailers sold since 2011! Over 500+ trailers in stock throughout our 7 locations! Contact us today for a free no-obligation proposal!

We offer a Veteran and Active Military Discount of $25 off your purchase of a trailer. Be sure to let your salesperson know at the time of checkout. Thank you for your service!

The website updates its listings every 24 – 48 hours so please call ahead of time to ensure the availability of the Trailer you might wish to purchase. We do everything in our power to bring you high-quality images that match the trailer description, but in some cases, we use stock photos to represent the trailer, so options and colors may differ from trailer to trailer.

Data Generated 2023-12-07 17:49

Additional information

Dimensions 20 × 9 in
