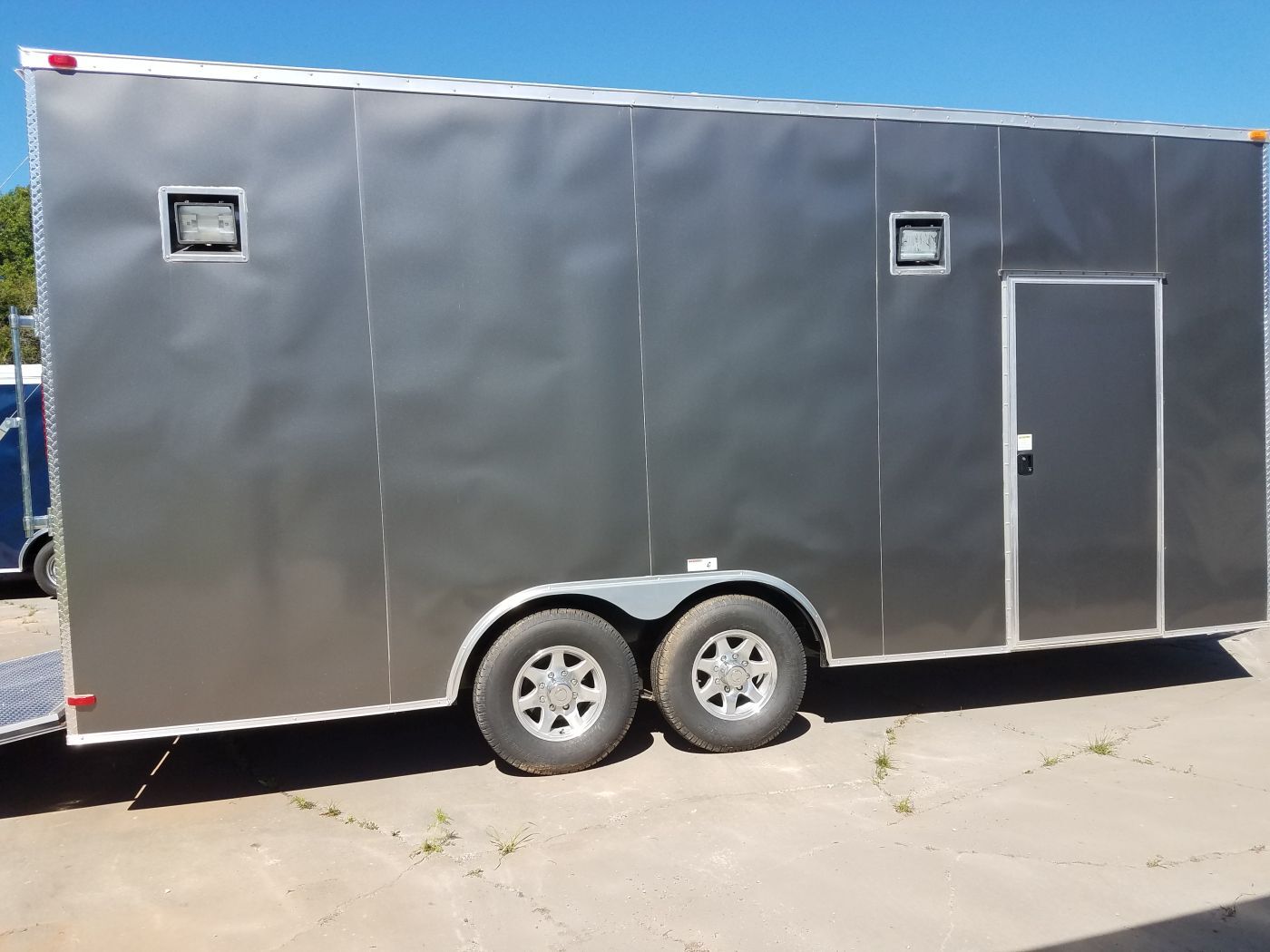

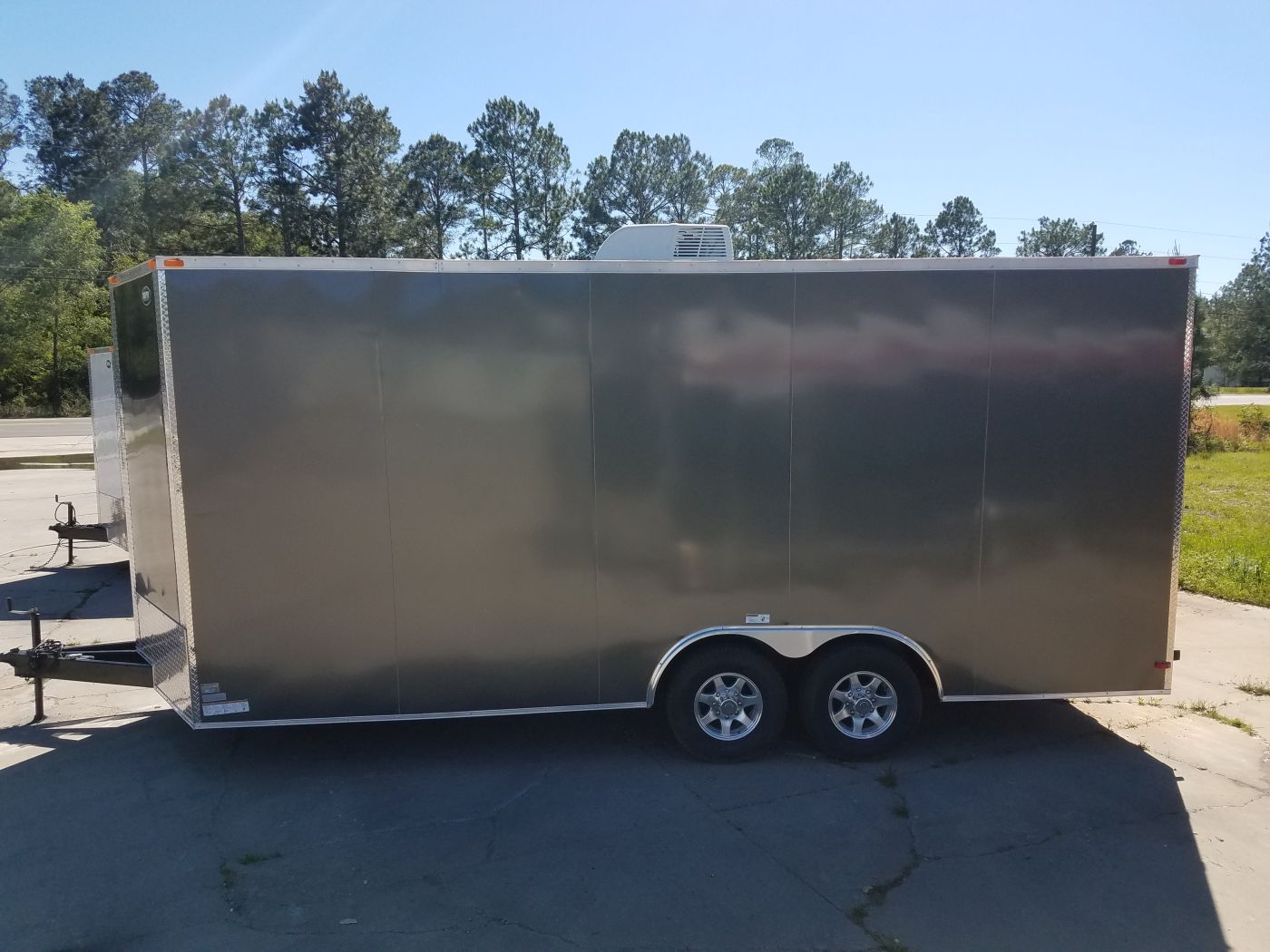

South Georgia Cargo 8.5×20 TA Trailer – Charcoal, Ramp, 7K Axles, Extra Height, Electrical, AC, Additional Options


Custom 8.5×20 Tandem Axle Trailer – Charcoal Screwless Exterior, Rear Ramp Door with ATP Liner, Finished and Insulated Interior, Electrical Package, AC Unit, Upgraded RoofCeiling, and Many Other Options

SKU: BS 8.5x20TA5L - Chr, R, RV, Options 23149 - Catalog Categories: , , , Tags: , ,


Trailer Specifications:

– ST205/75/R15 15in Radial Tires
– Upgrade Rims from Steel Mod to Star Mag for 7,000 lbs Axle (Each Rim)
– Charcoal Gray .030 Aluminum Exterior with Matching Screws
– V-Nose with Vertical ATP Trim
– 3/4in Plywood Floor Painted Underneath
– 3/8in Grade A Plywood Walls
– 1in x 1in Steel Tube in Walls and Ceiling
– 2,000 lbs. Tongue Jack
– LED Strip Tail Lights
– Wall Studs 16in On Center
– Upgrade 24in On Center Ceiling to 12in
– Screwless Exterior (8.5 Wide)
– Galvalume Roof System
– 24in ATP Stone Guard on Front
– 12V Interior Dome Light with Switch
– Manual Crank Roof Vent
– Floor Studs 16in On Center
– 7-Way Round Bargman Electric Connector
– Upgrade Tandem 3,500 lbs. Leaf Spring Axles to 7,000 lbs. (Trailers Less than 8.5ft Wide will be a Couple Inches Narrower)
– Medium Duty Ramp Door with Spring Assist
– 36in RV Style Door with Flush Lock
– 2-5/16in Ball Coupler
– 6in I-Beam Main Rails
– Beavertail Floor in Rear
– Recessed D-Rings in Floor
– Interior Height 90in (6ft6in +12in Extra Height)
– Emergency Break-Away Kit
– Safety Chains
– One Year Manufacturers Limited Warranty
– +12in Extra Height (Please allow for about a 1in Tolerance)
– One Piece Aluminum Roof
– 3/8in Standard Plywood on Ceiling
– Extended Tongue – +12in (Upgrades to 66in Triple Tube Tongue) 6′ & 7′ Wides
– Wire and Brace Existing Roof Vent for A/C
– 13,500 BTU A/C with Heat Strips (Requires Luan Ceiling Liner) (Occupies Roof Vent)
– 30 Amp Package – Panel Box, 25ft 30A Lifeline, 30A Main Breaker, 2x20A Breakers, 2x4ft Fluorescent Lights, 2x110V Recepts (May want Ceiling Liner to Cover Wiring)
– Insulated Ceiling (Requires Ceiling Liner)
– Insulated Walls
– Ceiling Liner – White Vinyl
– Wall Liner – White Vinyl
– Floor Liner – Diamond Rubberized Tread Plate (RTP)
– Ramp and Flap Liner – Diamond Aluminum Tread Plate (ATP) on Rear Ramp and Flap
– 8ft Metal Base and Overhead Cabinets (3 doors each)

$17,795.00 Picked up at our factory lot in Pearson, GA (Call (229) 588-2005 for Availability)

Want to pick it up from one of our Lot locations?
$18,205.00 Picked up at our lot in Lutz, FL (Call (813) 920-0570 for Availability)
$18,132.00 Picked up at our lot in Bushnell, FL (Call (352) 593-9800 for Availability)
$18,412.00 Picked up at our lot in Fayetteville, NC (Call (910) 705-8330 for Availability)
$18,315.00 Picked up at our lot in Ft Pierce, FL (Call (772) 801-0602 for Availability)
$17,960.00 Picked up at our lot in Lake City, FL (Call (386) 361-6700 for Availability)
$17,795.00 Picked up at our lot in Pearson, GA (Call (229) 588-2005 for Availability)
$19,201.00 Picked up at our lot in Hillsboro, TX (Call (254) 221-0717 for Availability)

Looking to build a custom trailer? We can customize your next trailer with thousands of options! If you can dream it, we can build it! Contact one of our salespeople to be walked through the entire process and obtain a quote today!

Over 20,000 Trailers sold since 2011! Over 500+ trailers in stock throughout our 7 locations! Contact us today for a free no-obligation proposal!

We offer a Veteran and Active Military Discount of $25 off your purchase of a trailer. Be sure to let your salesperson know at the time of checkout. Thank you for your service!

The website updates its listings every 24 – 48 hours so please call ahead of time to ensure the availability of the Trailer you might wish to purchase. We do everything in our power to bring you high-quality images that match the trailer description, but in some cases, we use stock photos to represent the trailer, so options and colors may differ from trailer to trailer.

Data Generated 2023-12-07 17:49

Additional information

Dimensions 20 × 9 in
