South Georgia Cargo 8.5×28 TA Trailer – Red, Concession Doors, AC, Electrical, Many Options

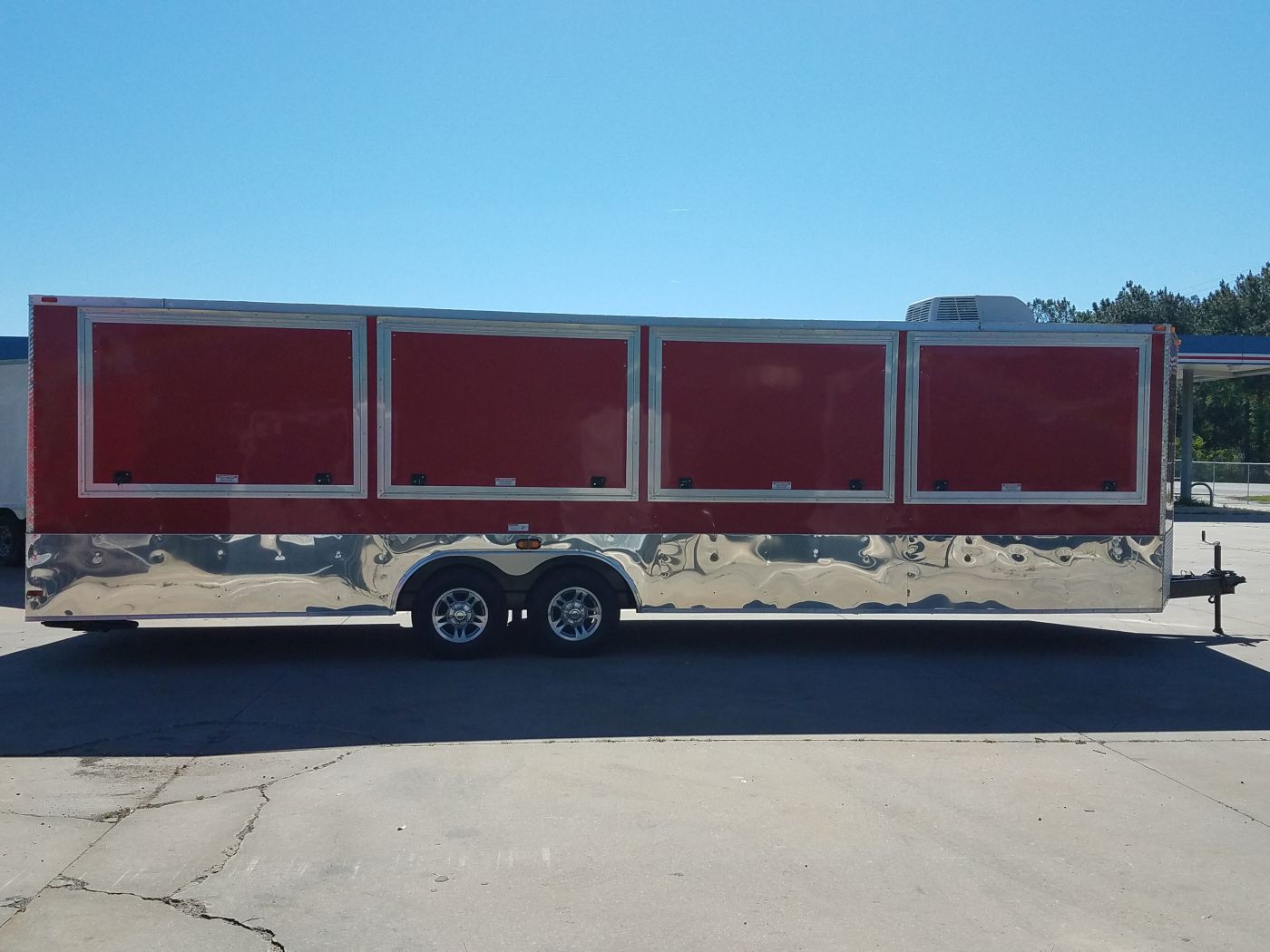

Custom 8.5×28 Tandem Axle Trailer – Red, Rear and V-Nose Door Access, 4 Concession Doors on Side, Electrical Package, AC, Mag Wheels, 6in Extra Height, Pair of Scissor Jacks, and Luan Ceiling

SKU: BS 8.5x28TA3L - Red, ND, RV, Options 23257 - Catalog Categories: , , , Tags: , ,


Trailer Specifications:

– ST225/75/D15 15in Bias Ply Tire
– Upgrade Rims from Steel Mod to Star Mag for 5,200 lbs Axle (Each Rim)
– Red .030 Aluminum Exterior with Matching Screws

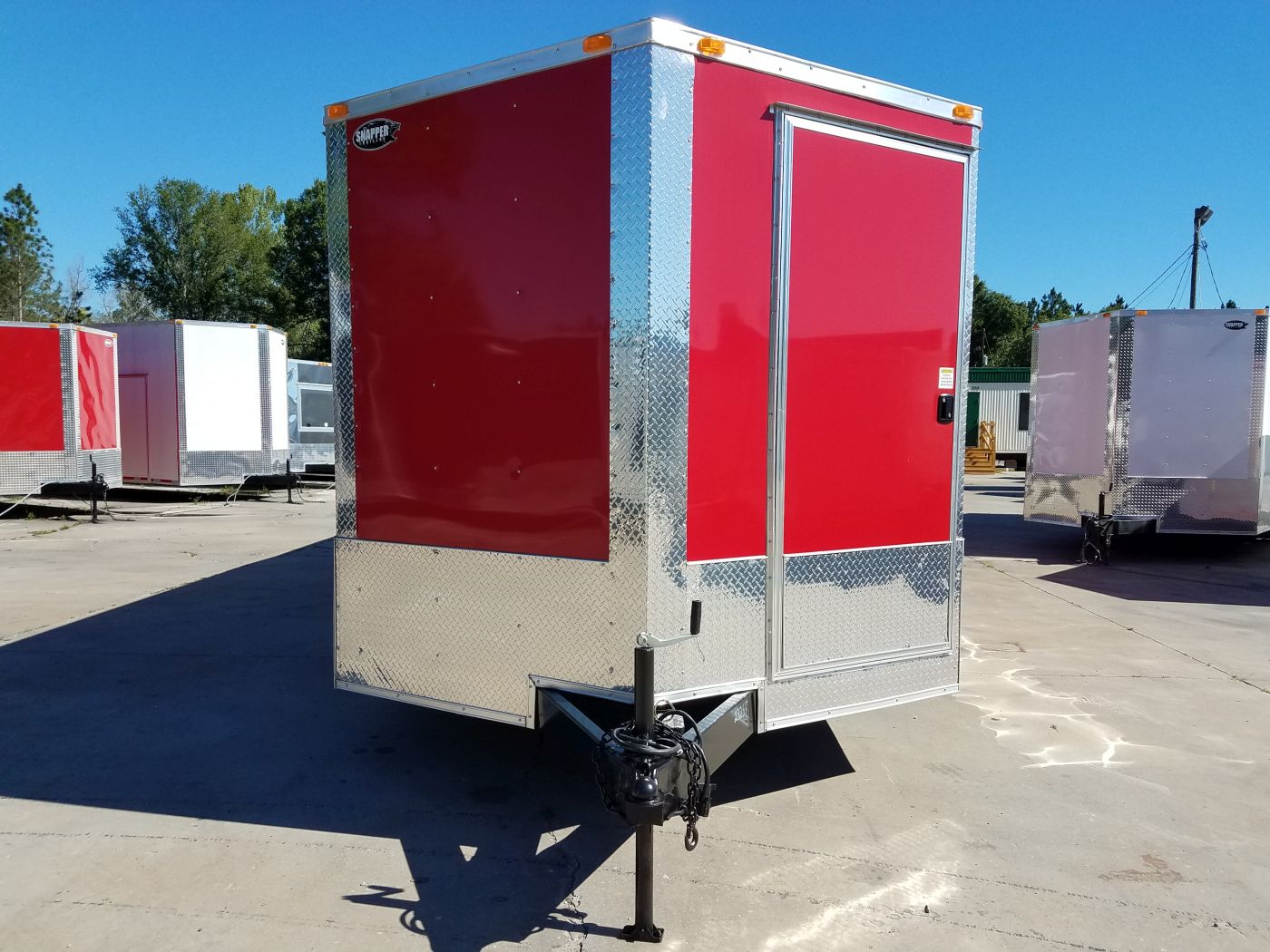

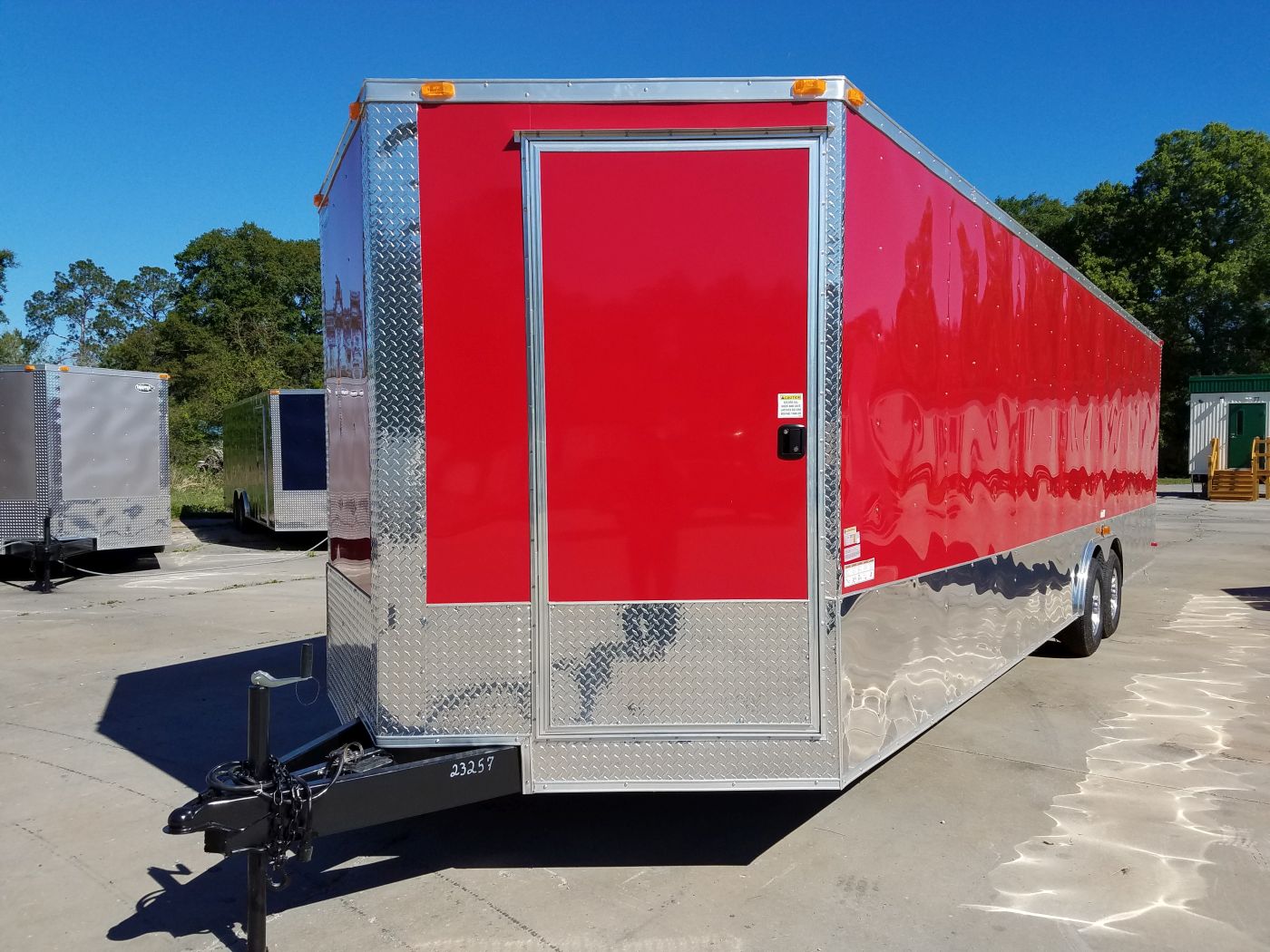

– V-Nose with Vertical ATP Trim
– 3/4in Plywood Floor Painted Underneath
– 3/8in Grade A Plywood Walls
– 1in x 1in Steel Tube in Walls and Ceiling
– 2,000 lbs. Tongue Jack
– LED Strip Tail Lights
– Wall Studs 16in On Center
– Bowed Tubing Ceiling Studs 24in On Center
– Screwed Aluminum Metal Exterior
– Galvalume Roof System
– 24in ATP Stone Guard on Front
– 12V Interior Dome Light with Switch
– Manual Crank Roof Vent
– Floor Studs 16in On Center
– 7-Way Round Bargman Electric Connector
– Tandem 5,200lb Leaf Spring Axles with 4in Drop and Electric Brakes on all Wheels

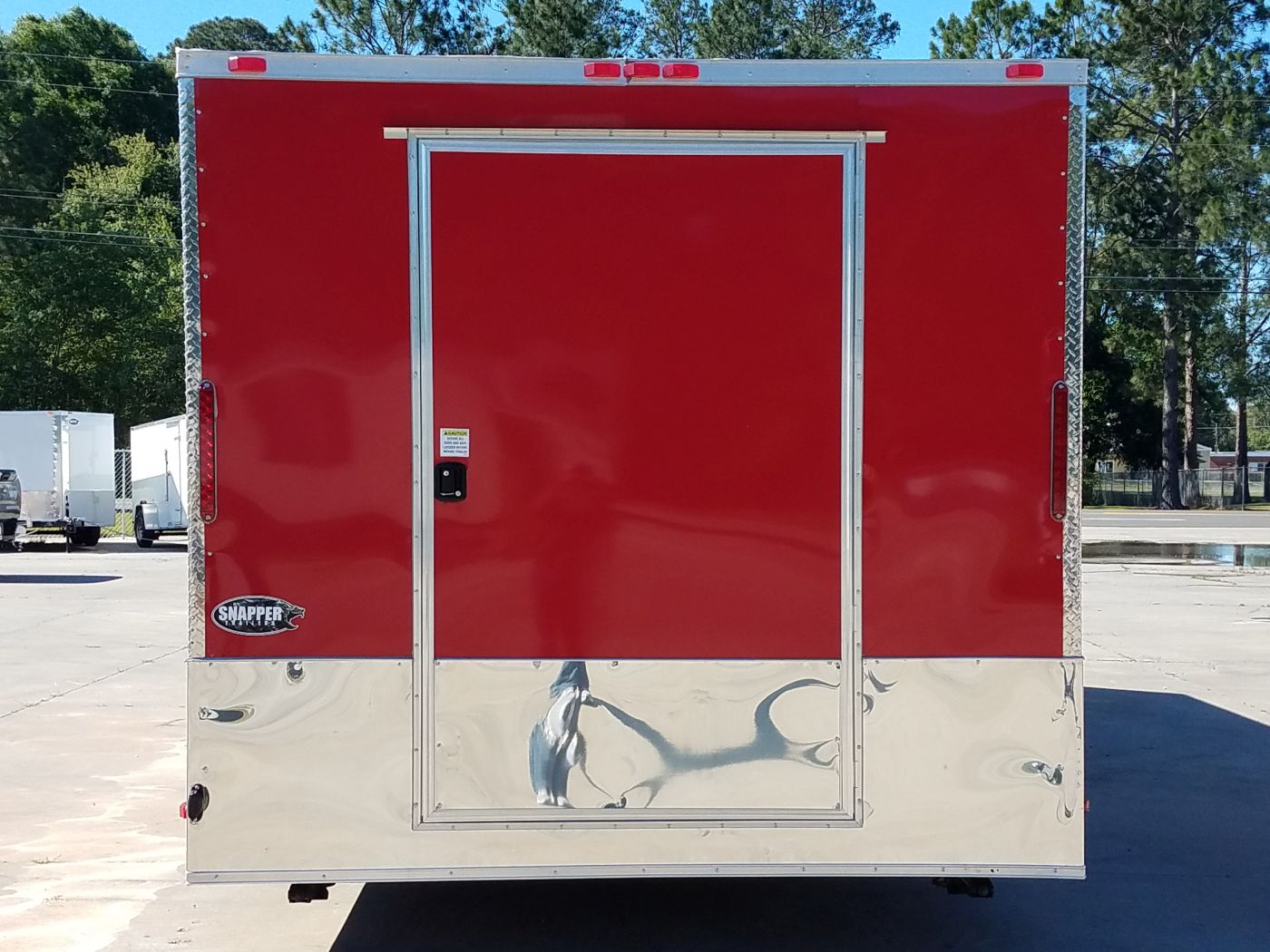

– Eliminate Rear Access. Rear To Be Solid Wall
– 36in RV Style Door with Flush Lock
– 2-5/16in Ball Coupler
– Eliminate Beaver Tail in Car Haulers
– Recessed D-Rings in Floor
– Interior Height 84in (6ft6in +6in Extra Height)
– Double 6in I-Beam Main Rails
– Emergency Break-Away Kit
– Safety Chains
– One Year Manufacturers Limited Warranty
– 30 Amp Package – Panel Box, 25ft 30A Lifeline, 30A Main Breaker, 2x20A Breakers, 2x4ft Fluorescent Lights, 2x110V Recepts (May want Ceiling Liner to Cover Wiring)
– +6in Extra Height (Please allow for about a 1in Tolerance)
– Ceiling Liner – Luan

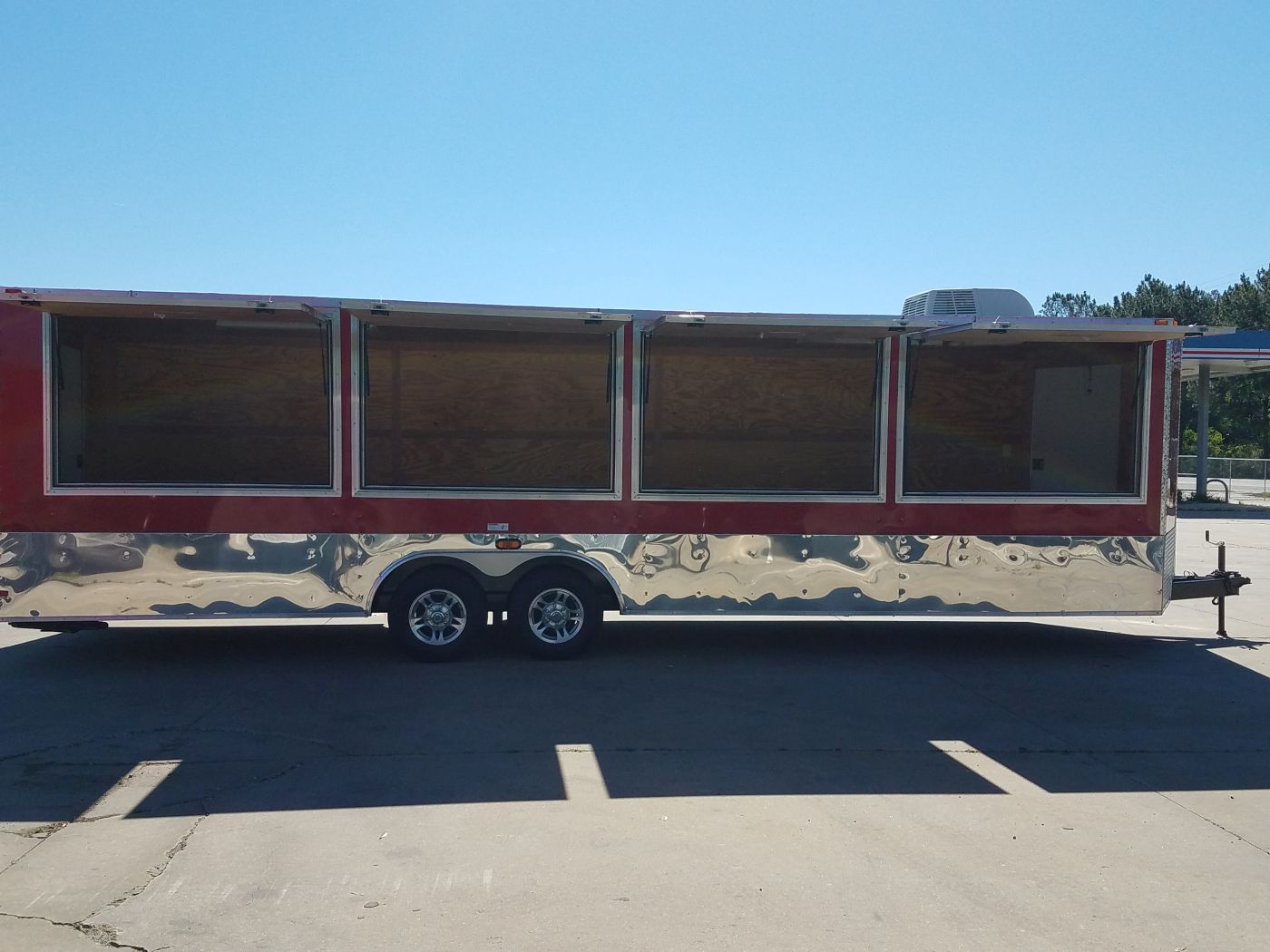

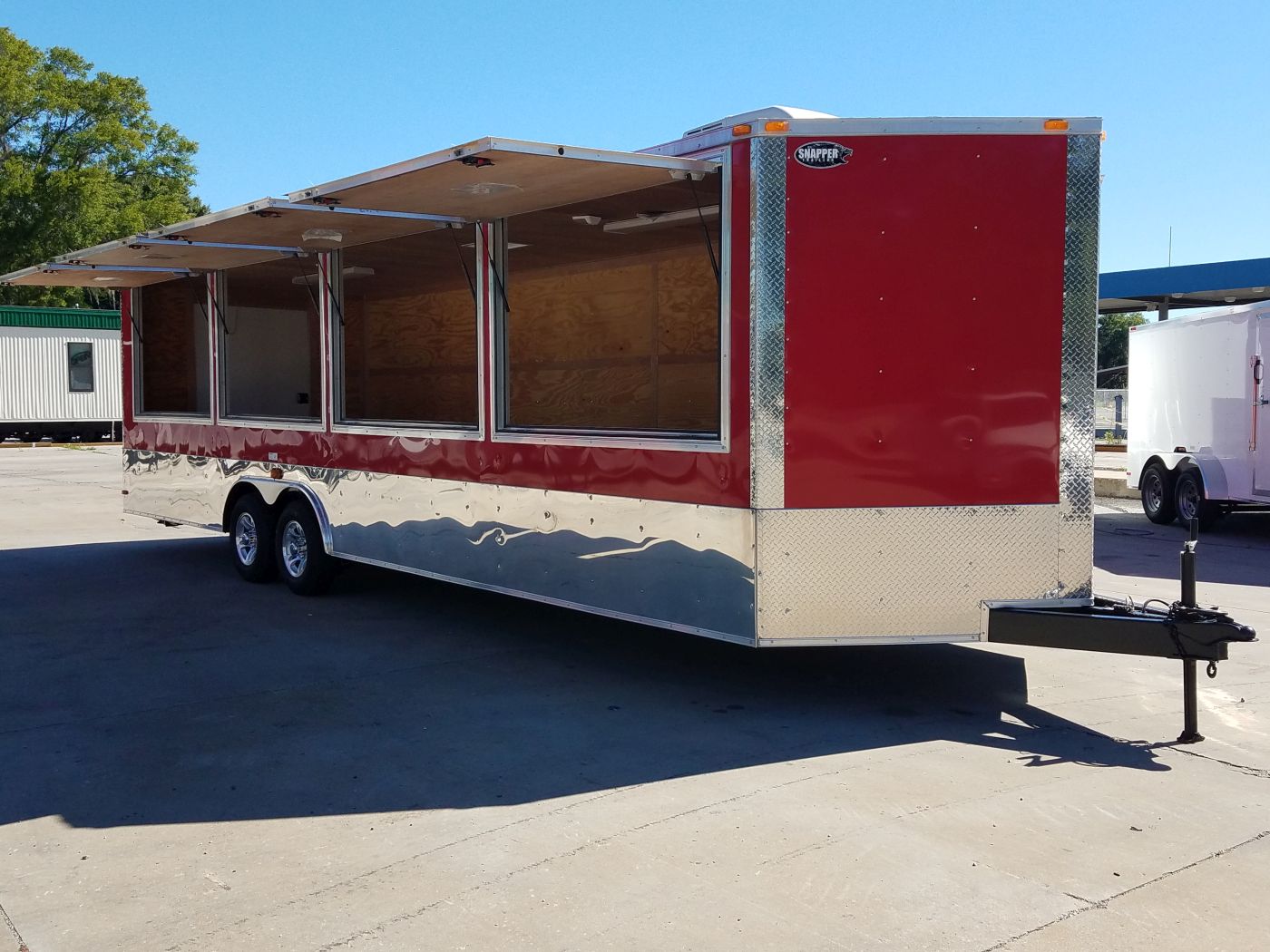

– 72×48 Concession Door (No Window) (Ensure that Canopy Does not Need Extra Height)
– 13,500 BTU A/C with Heat Strips (Requires Luan Ceiling Liner) (Occupies Roof Vent)

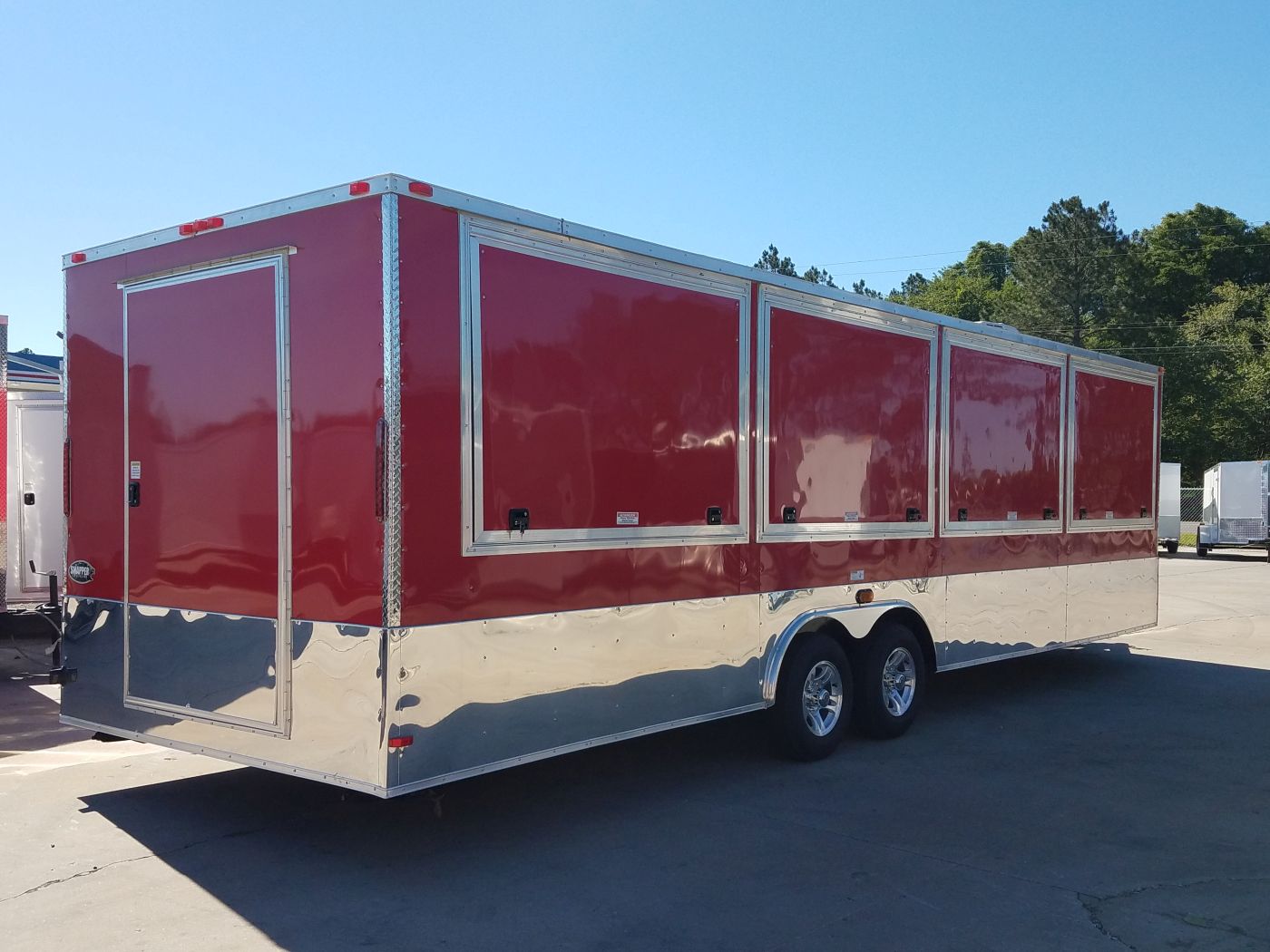

– Additional 48in x 75in RV Style Side Door with Flush Lock
– Wrap – 24in Anodized Aluminum Trim on Sides and Rear
– Move Side Door from Standard Location
– Pair of Scissor Stabilizer Jacks
– ATP on All Four Corners
– Add Manual Crank Roof Vent
– Wire and Brace Existing Roof Vent for A/C
– Add Pair of Amber Turn Signals above Fenders/Wheel Wells

$17,402.00 Picked up at our factory lot in Pearson, GA (Call (229) 588-2005 for Availability)

Want to pick it up from one of our Lot locations?
$17,377.00 Picked up at our lot in Lutz, FL (Call (813) 920-0570 for Availability)
$17,887.00 Picked up at our lot in Bushnell, FL (Call (352) 593-9800 for Availability)
$18,379.50 Picked up at our lot in Fayetteville, NC (Call (910) 705-8330 for Availability)
$18,219.50 Picked up at our lot in Ft Pierce, FL (Call (772) 801-0602 for Availability)
$17,599.50 Picked up at our lot in Lake City, FL (Call (386) 361-6700 for Availability)
$17,402.00 Picked up at our lot in Pearson, GA (Call (229) 588-2005 for Availability)
$20,137.00 Picked up at our lot in Hillsboro, TX (Call (254) 221-0717 for Availability)

Looking to build a custom trailer? We can customize your next trailer with thousands of options! If you can dream it, we can build it! Contact one of our salespeople to be walked through the entire process and obtain a quote today!

Over 20,000 Trailers sold since 2011! Over 500+ trailers in stock throughout our 7 locations! Contact us today for a free no-obligation proposal!

We offer a Veteran and Active Military Discount of $25 off your purchase of a trailer. Be sure to let your salesperson know at the time of checkout. Thank you for your service!

The website updates its listings every 24 – 48 hours so please call ahead of time to ensure the availability of the Trailer you might wish to purchase. We do everything in our power to bring you high-quality images that match the trailer description, but in some cases, we use stock photos to represent the trailer, so options and colors may differ from trailer to trailer.

Data Generated 2023-12-07 17:49

Additional information

Dimensions 28 × 9 in
